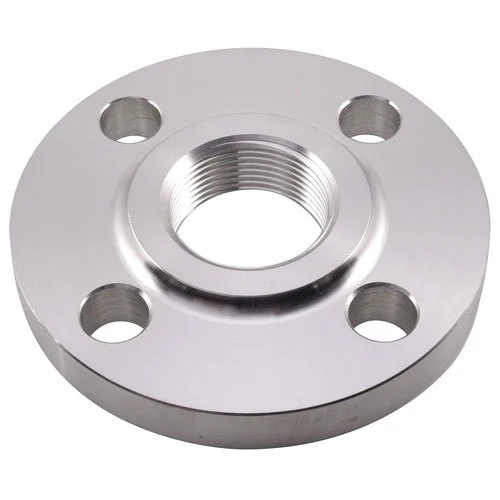

Threaded Flanges
Threaded flanges, similar in outline to slip-on flanges, feature a threaded bore for assembly without welding, making them suitable for low-pressure piping systems. Optional welding after assembly is not recommended for enhancing performance.
These flanges are cost-effective and easy to install, widely used in industries like plumbing, water treatment, and low-pressure gas systems where welding is impractical or unnecessary.
Threaded flanges are designed for low-pressure applications, featuring a threaded bore that allows the flange to be screwed onto a pipe without welding. This simplifies installation and reduces costs, particularly in systems where welding equipment is unavailable or hazardous. While a seal weld around the joint can be applied post-assembly, it is not considered a reliable method for increasing the flange’s pressure capacity, limiting their use to less demanding environments.
Threaded flanges are manufactured to meet industry standards, ensuring compatibility and performance in low-pressure piping systems.
| Grade/Standard | Equivalent | Application |
|---|---|---|
| ASTM A105, C21/C22.8, EN10222-2 | Carbon Steel | General piping, low-pressure gas |
| ASTM A182 F304(L/H), UNS S30400, WSt. 1.4301, EN10222-5 | Stainless Steel | Water treatment, food processing |
| ASTM A182 F316(L/H/Ti), UNS S31600, WSt. 1.4401, EN10222-5 | Stainless Steel | Chemical processing, marine |
Threaded flanges are widely used in industries requiring simple and cost-effective low-pressure connections:
| Properties | Values & Limits |
|---|---|
| Material | Carbon Steel, Stainless Steel |
| Standards | ASME B16.5, ANSI B16.47, EN10222-2, EN10222-5 |
| Connection | Threaded (Optional Seal Weld) |
| Size Range | 1/2" to 4" (Standard) |
| Pressure Rating | 150#, 300#, 600# |
