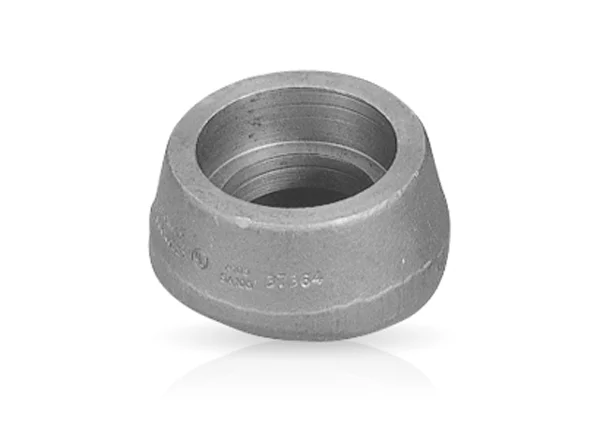

Sockolets
Sockolets are branch connection fittings that use a socket-weld design, allowing a plain-end branch pipe to be inserted and fillet welded to the run pipe for secure attachment.
Ideal for small-diameter, high-pressure piping systems, Sockolets are widely used in oil and gas, petrochemical, and power generation industries for reliable branch connections.
Sockolets feature a socket-weld connection where a plain-end branch pipe is inserted into the socket and secured with a fillet weld, while the fitting itself is fillet welded to the run pipe. Unlike Weldolets, which use a butt-weld with beveled ends, Sockolets are designed for smaller pipe sizes and offer ease of installation in high-pressure systems. Their reinforced design minimizes stress concentrations, ensuring strong and durable branch connections suitable for demanding industrial applications.
Sockolets are manufactured to meet stringent industry standards, ensuring compatibility and performance in demanding piping systems.
| Type/Standard | Material | Application |
|---|---|---|
| Standard Sockolet: MSS SP-97, ASME B16.11 | Carbon Steel (A105), Stainless Steel (304/304L, 316/316L) | Oil and gas, chemical processing |
| High-Pressure Sockolet: MSS SP-97 | Alloy Steel (A182 F11, F22), Duplex (F51), Inconel 625 | Power generation, high-pressure systems |
Sockolets are critical in industries requiring reliable branch connections in small-diameter piping systems:
| Properties | Values & Limits |
|---|---|
| Material | Carbon Steel (A105), Stainless Steel (304/304L, 316/316L), Alloy Steel (A182 F11, F22), Duplex (F51), Inconel 625 |
| Design Standards | MSS SP-97, ASME B16.11 |
| Connection | Socket-Weld, Fillet Weld |
| Size Range | 1/8" to 4" (Branch); Up to 36" (Run) |
| Pressure Rating | Up to 6000 PSI (Class 3000, 6000) |
| Wall Thickness | Sch 40 to Sch 160, XS, XXS |
| Testing Standards | ASME B31.3, ASME B16.11 |
