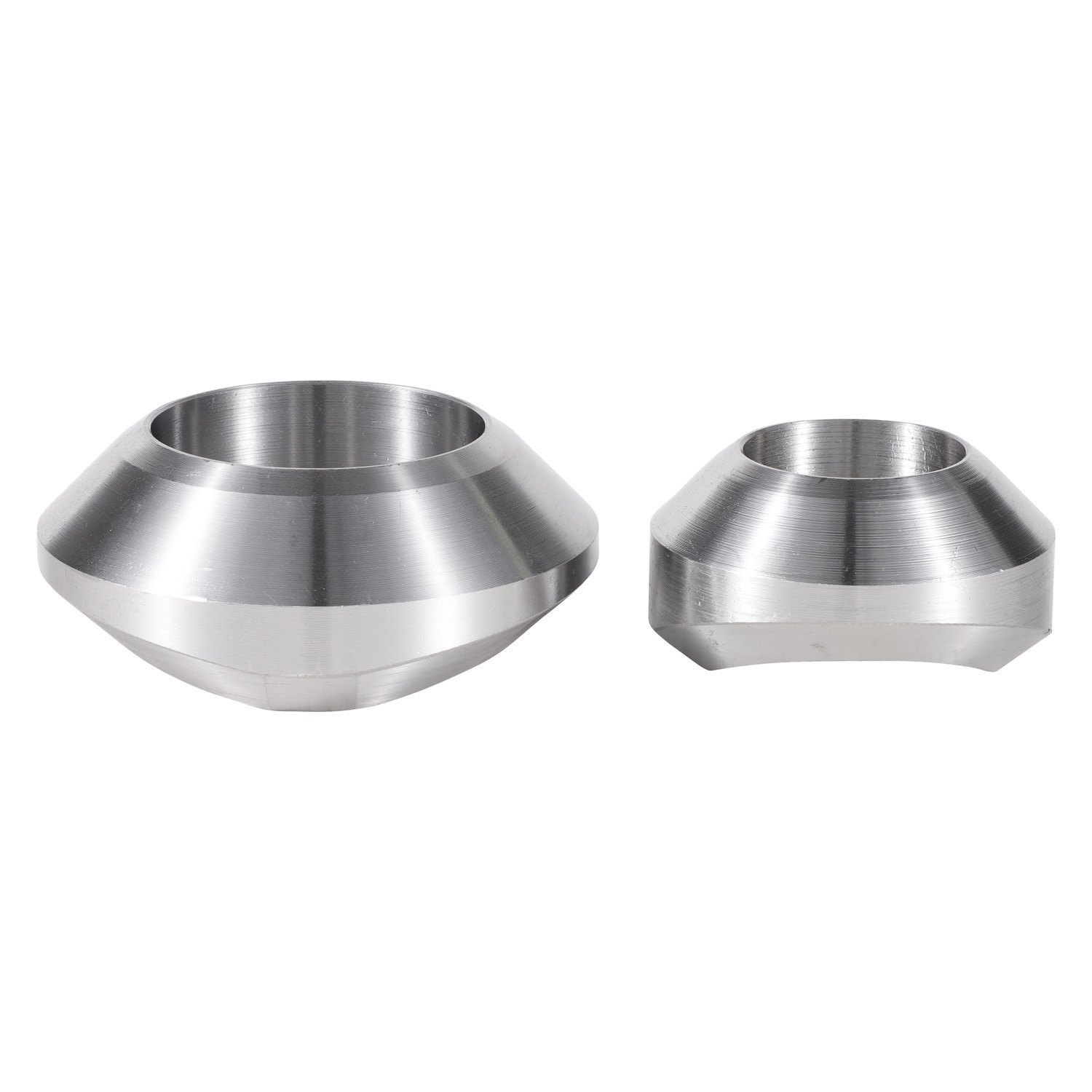

Weldolets
Weldolets are the most common branch connection fittings, designed for butt-welding onto outlet pipes with beveled ends, minimizing stress concentrations and providing integral reinforcement.
Widely used in oil and gas, petrochemical, and power generation industries, Weldolets ensure strong and reliable branch connections in high-pressure piping systems.
Weldolets are butt-weld fittings that facilitate branch connections by welding directly onto the run pipe, with beveled ends ensuring a smooth and strong weld joint. Their design reduces stress concentrations at the connection point and provides integral reinforcement, making them ideal for high-pressure and high-temperature applications. Available in various materials and sizes, Weldolets are versatile for creating branch outlets in piping systems, offering superior strength compared to other branch fittings like threadolets or sockolets.
Weldolets are manufactured to meet stringent industry standards, ensuring compatibility and performance in demanding piping systems.
| Type/Standard | Material | Application |
|---|---|---|
| Standard Weldolet: MSS SP-97, ASME B16.9 | Carbon Steel (A105, A234 WPB), Stainless Steel (304/304L, 316/316L) | Oil and gas pipelines, refineries |
| High-Pressure Weldolet: MSS SP-97 | Alloy Steel (A182 F11, F22), Duplex (F51), Inconel 625 | Power generation, high-pressure systems |
Weldolets are critical in industries requiring reliable branch connections in piping systems:
| Properties | Values & Limits |
|---|---|
| Material | Carbon Steel (A105, A234 WPB), Stainless Steel (304/304L, 316/316L), Alloy Steel (A182 F11, F22), Duplex (F51), Inconel 625 |
| Design Standards | MSS SP-97, ASME B16.9 |
| Connection | Butt-Weld |
| Size Range | 1/2" to 24" (Branch); Up to 36" (Run) |
| Pressure Rating | Up to ANSI Class 2500 lbs |
| Wall Thickness | Sch 10 to Sch XXS |
| Testing Standards | ASME B31.3, ASME B16.9 |
